How Far Can a Ring Camera See? Motion Range, Field of View, and Night Vision by Model

Ring does not publish a single "seeing distance" for its cameras, and there is no honest way to give one. Three separate limits decide what a Ring doorbell or camera captures: how far away movement still triggers a recording (Ring's standard maximum is about 30 feet), how wide the lens sees (140 degrees horizontally on every doorbell Ring currently sells), and how much detail survives at distance, which depends on resolution and is the part most answers skip. A person crossing the street shows up in the frame. Whether you could recognize that person's face is a different question, and past roughly 10 to 15 feet the answer is usually no, even on a 4K doorbell.

This is based on Ring's current product documentation and support guidance, plus the pixel-density guideline that professional camera installers use.

Three different ranges, and why "30 feet" is only one of them

When people ask how far a Ring camera can see, they are usually asking one of three questions without realizing they are different.

• Motion detection range is the distance at which movement wakes the camera and triggers an alert or recording. Ring puts the standard maximum at 30 feet, and it can be reduced with the Motion Sensitivity slider.
• Field of view is an angle, not a distance. The lens sees a wedge-shaped slice of the world. Nothing stops it from seeing a car 100 feet away; the car is simply small in the frame.
• Usable detail is how many pixels land on a face, a plate, or a package at a given distance. That is set by the sensor resolution and the lens angle, and it falls off quickly.

Night changes all three: infrared illumination only reaches so far, color drops out without ambient light, and camera-based detection features work with a poorer image.

Motion detection: about 30 feet, and how Ring devices sense movement

Ring's Motion Zones guidance states that the standard maximum detection range for Ring devices is 30 feet, and adds that larger objects farther away, such as vehicles, can still trigger an alert. The Motion Detection article adds two qualifiers: the maximum range varies by device type, and lowering Motion Sensitivity shortens it. If your camera misses events at the edge of the driveway, raising sensitivity is the first thing to try; if it fires on every passing car, lowering it or redrawing the zones is the fix.

Ring devices sense motion in two different ways, and it matters which one you own.

Battery-powered doorbells and cameras have traditionally used passive infrared (PIR) sensors. Ring's current help center explains the technology in its Smart Lighting documentation: PIR sensors sit behind a faceted lens and respond to changes in heat moving across their view, with roughly a 180-degree side-to-side field. The same principle explains the familiar quirks of battery Ring devices. Sun-warmed foliage swaying in the wind, warm gusts, and shadows moving across hot pavement can all register as motion, and glass blocks the sensor entirely. To conserve battery, these devices also let you set Motion Frequency to Regularly or Periodically, which makes the sensor pause after each event. If a battery camera keeps missing people, check that setting and switch on Advanced Motion Detection, which Ring says some battery devices need for accurate detection and for Camera Motion Zones.

Ring's Pro, Elite, and 4K models add radar. Ring calls this 3D Motion Detection. Radar measures distance as well as movement, which is what makes Bird's Eye Zones possible: you draw the zone on an aerial map of your property, and the device only alerts on motion inside it, up to 30 feet from the device. As of September 2026, Ring's compatibility list covers Battery Doorbell Pro and Battery Doorbell 4K Pro, Wired Doorbell Pro (Video Doorbell Pro 2), Wired Doorbell 4K Pro, Wired Doorbell 4K Elite, Floodlight Cam Wired Pro and Floodlight Cam 4K Pro, Spotlight Cam Pro and Spotlight Cam 4K Pro, Stick Up Cam Pro, Outdoor Cam 4K Pro, and Ring Elite 4K. (Ring's list also names the Wired Doorbell 2K, whose own spec sheet lists standard Motion Detection; check the product page for the model you own.) Ring notes that weather, obstacles, reflections, and Wi-Fi connectivity can all affect the radar.

One number to treat with care: the product FAQ for the Wired Doorbell 2K says it can detect motion "up to 31 meters", roughly 100 feet, while Ring's support documentation puts the standard maximum at 30 feet. The support figure is the one to plan around. What trips a sensor at long range is a large object such as a car, not a person walking up the path.

Two settings quietly cap the range on any model. You can draw up to three Camera Motion Zones per device, and motion outside a zone is always ignored. And if the device is offline, it detects nothing at all.

Field of view by model: how wide, not how far

Ring renamed most of its lineup in August 2026, replacing labels like "2nd Gen" with the recording resolution. Battery Doorbell Pro (2nd Gen) is now Battery Doorbell 4K Pro, Floodlight Cam (2nd Gen) is Floodlight Cam 2K, and so on; Ring's product name changes article has the full list, and the hardware did not change. The figures below come from Ring's product and support pages as of September 2026.

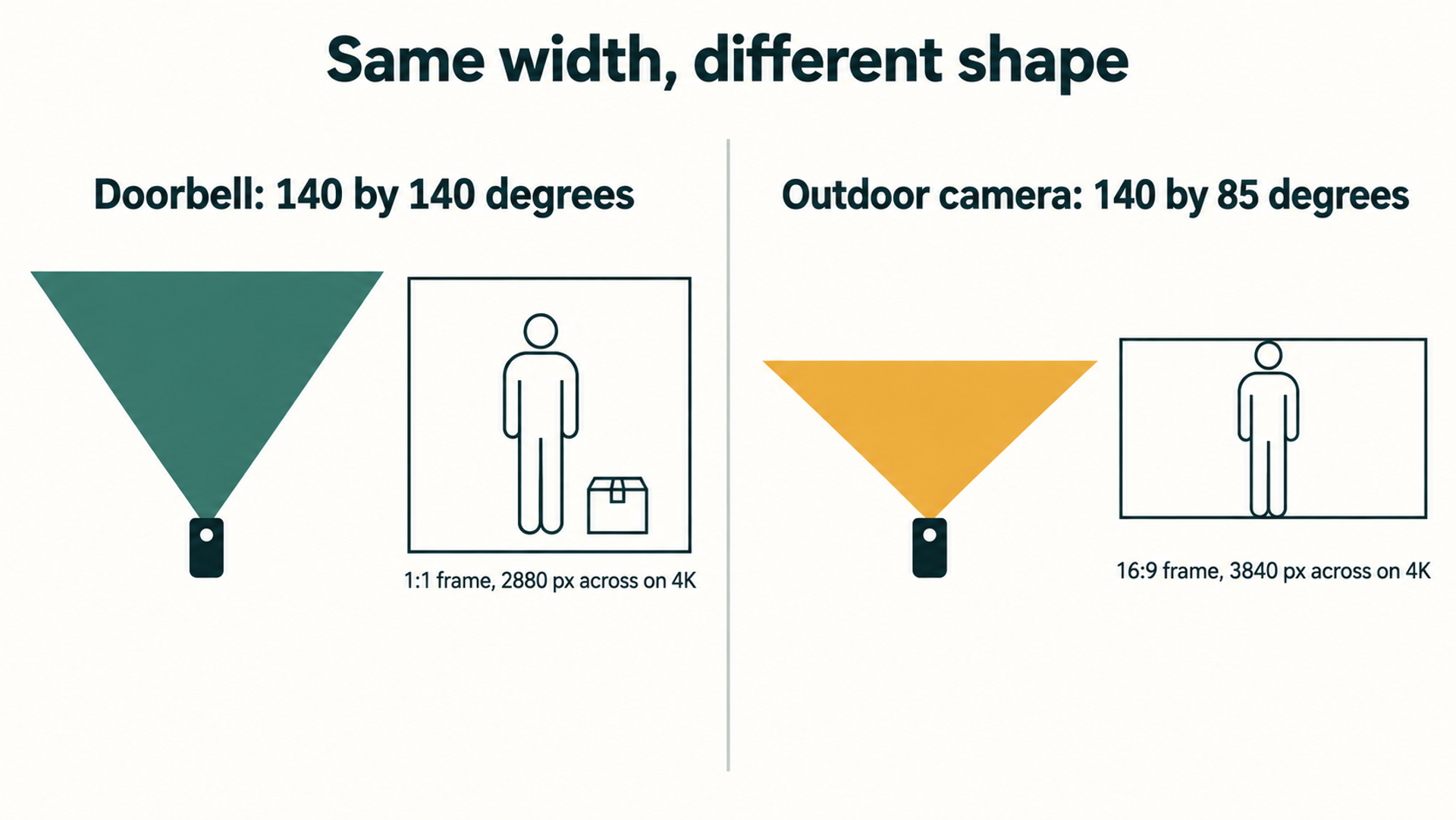

Current doorbells. Every doorbell Ring currently sells uses the same 140-degree horizontal by 140-degree vertical "head-to-toe" lens: Battery Doorbell 4K Pro, Battery Doorbell 2K Plus, Battery Doorbell 2K, Peephole Cam 2K, Wired Doorbell 2K, Wired Doorbell 2K Plus, Wired Doorbell 4K Pro, and Wired Doorbell 4K Elite. The square view is why a doorbell mounted at the recommended height can show both a visitor's face and a package on the mat. The differences between these models are resolution (2K or 4K), motion technology (radar on the 4K Pro and 4K Elite), and night-vision features, not how wide they see. Because the frame is square, the pixel counts are square too: Ring's product FAQs give 1920 x 1920 for the 2K doorbells and 2880 x 2880 for the Wired Doorbell 4K Pro, not the 3840 x 2160 of a widescreen 4K camera. That matters for the detail estimates below.

Current outdoor cameras. Outdoor Cam 4K Pro and Spotlight Cam 4K Pro see 140 degrees horizontally and 85 degrees vertically, and record a widescreen 3840 x 2160 frame. Outdoor Cam Plus, the 2K model, sees 140 by 80 degrees. Cameras are meant to be mounted high and tilted down, so they trade vertical coverage for horizontal reach.

Recent models still in many homes. The previous Battery Doorbell Pro (1536p) has a 150 by 150-degree field of view. Video Doorbell 4, now discontinued, records 1080p through a 160-degree horizontal, 90-degree vertical lens. Ring's support pages for older devices list the field of view under Tech Specs, and the Ring app shows the product name under Device Health (Ring's guide to finding your model).

A wider angle is not free. The same number of pixels is spread over more scene, so everything looks smaller and farther away than it is. That is why a 1080p doorbell with a 160-degree lens can make a visitor at the bottom of the steps look like a thumbnail.

How far away can you still recognize a face?

This is the question the 30-foot figure never answers, and it can be estimated from published numbers.

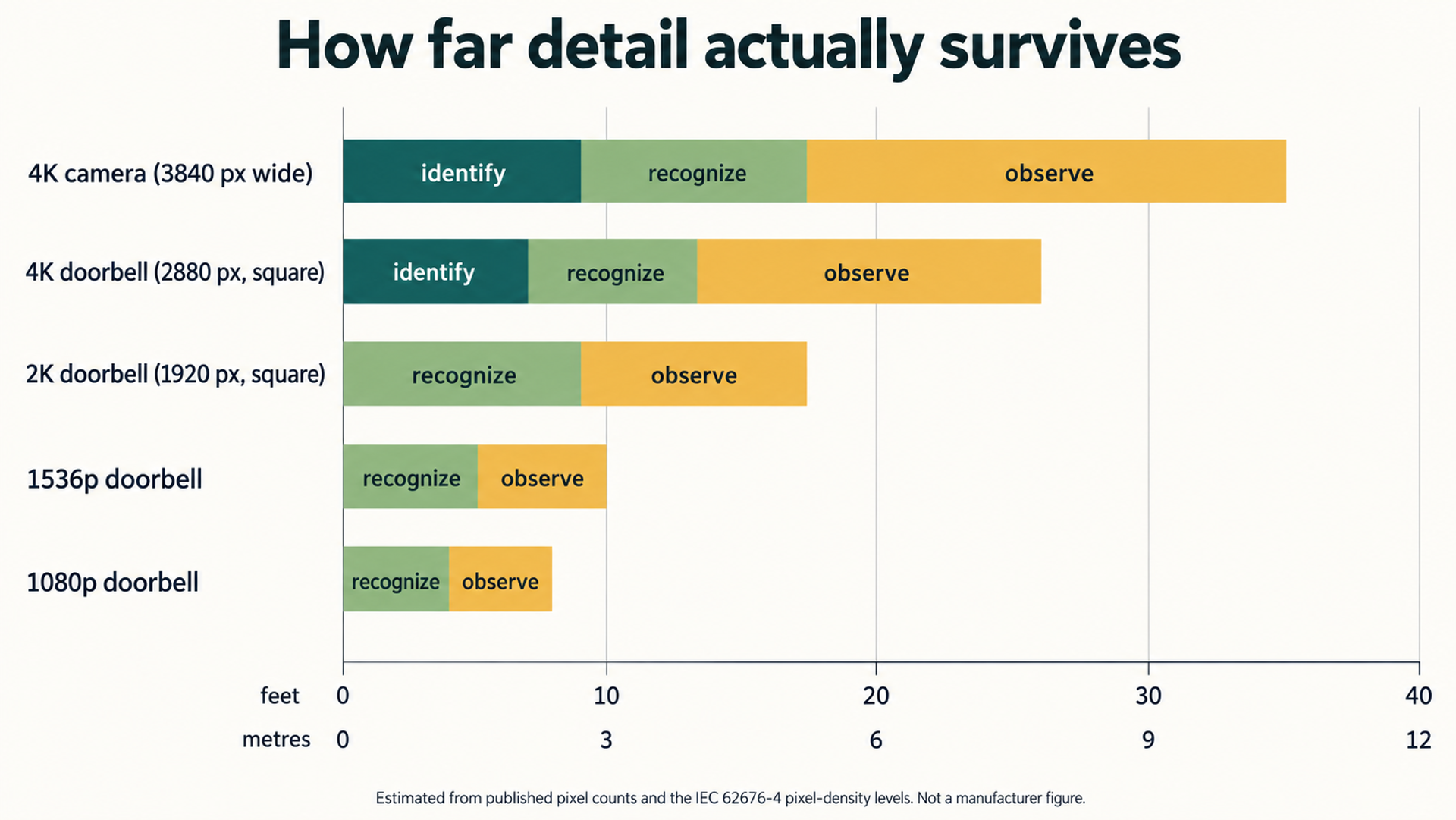

Surveillance installers size cameras using pixel density, the number of pixels that land on each foot of the scene at a given distance. The IEC 62676-4 standard, as summarized in Axis Communications' white paper, sets four levels: about 8 pixels per foot to detect that someone is present, 20 to observe details like clothing, 40 to recognize a person you already know, and 80 to identify a stranger.

The geometry is simple. A 140-degree lens covers a strip roughly 5.5 times as wide as the distance to the camera, so at 20 feet the frame spans about 110 feet. Divide the frame's horizontal pixel count by that width and you get pixels per foot. The estimates below assume the device is actually recording at its full resolution and spread the pixels evenly across the frame; wide-angle lenses pack more pixels in the center than at the edges, so subjects in the middle of the frame do a little better than these averages.

• 4K doorbells, 140-degree square frame (Battery Doorbell 4K Pro, Wired Doorbell 4K Pro, Wired Doorbell 4K Elite; 2880 pixels across): about 52 pixels per foot at 10 feet, 26 at 20 feet, 17 at 30 feet. Identification-level detail ends around 7 feet, recognition around 13 feet, observation around 26 feet.
• 4K cameras, 140-degree widescreen frame (Outdoor Cam 4K Pro, Spotlight Cam 4K Pro; 3840 pixels across): about 70 pixels per foot at 10 feet, 35 at 20 feet, 23 at 30 feet. Identification ends around 9 feet, recognition around 17 feet, observation around 35 feet.
• 2K doorbells, 140-degree square frame (Battery Doorbell 2K and 2K Plus, Wired Doorbell 2K and 2K Plus, Peephole Cam 2K; 1920 pixels across): about 35 pixels per foot at 10 feet, 17 at 20 feet, 12 at 30 feet. Recognition ends around 9 feet, observation around 17 feet, detection around 44 feet.
• 1536p, 150-degree square frame (previous Battery Doorbell Pro; 1536 pixels across): about 21 pixels per foot at 10 feet, 10 at 20 feet, 7 at 30 feet. Recognition only within about 5 feet, observation to about 10 feet, detection to about 26 feet.
• 1080p, 160-degree lens (Video Doorbell 4 and similar; 1920 pixels across): about 17 pixels per foot at 10 feet, 8 at 20 feet, 6 at 30 feet. Recognition within about 4 feet, observation to about 8 feet, detection to about 21 feet.

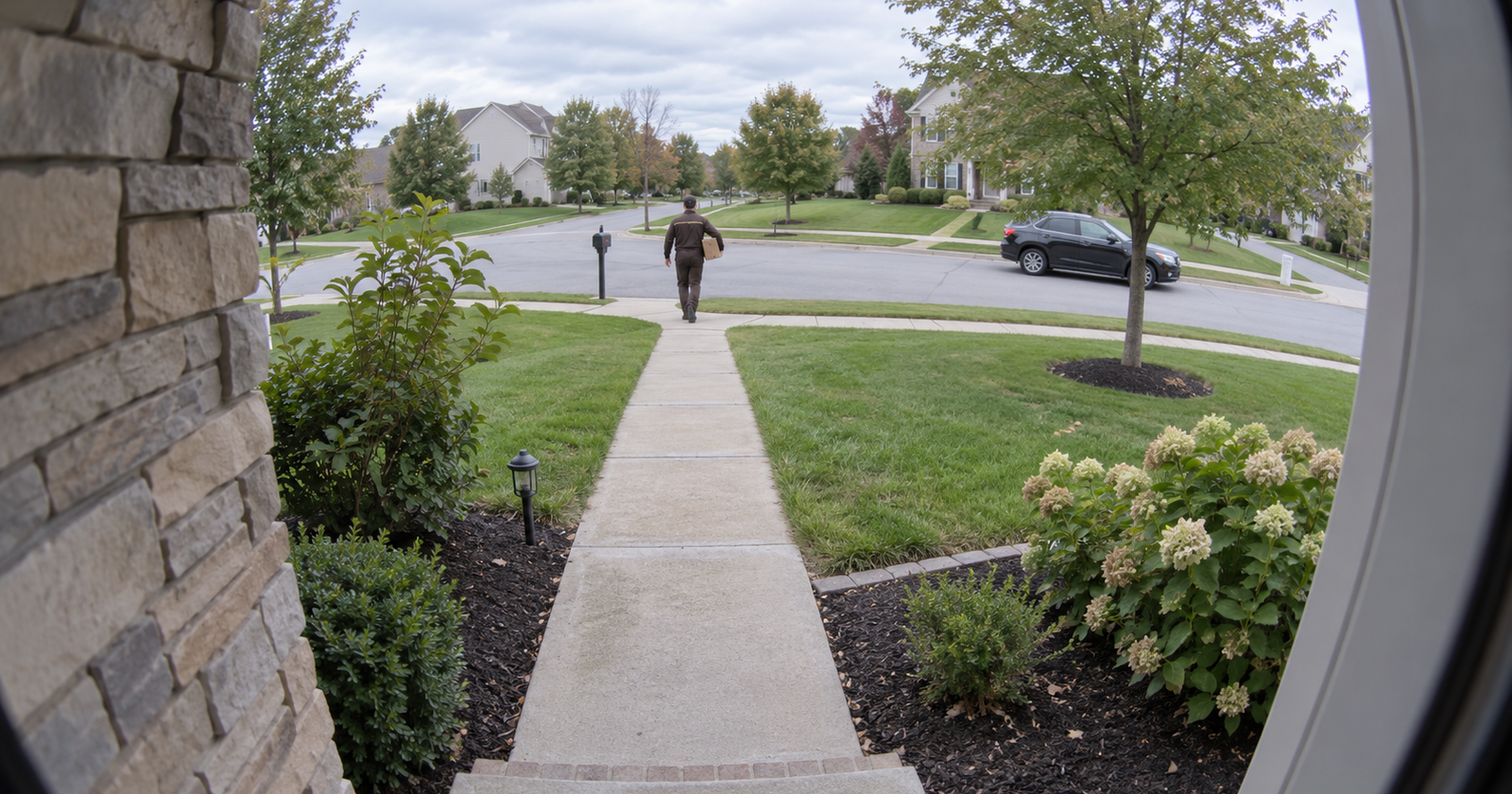

The practical reading is that a doorbell's identification zone is the porch. Even on a 4K doorbell, the first 7 feet or so are where a stranger's face is clear enough to matter; between 7 and 13 feet you can tell that it is a person and roughly who, and beyond that you are watching shapes. On a 1080p doorbell the same zones shrink to a few feet. Ring's own product FAQ for the Wired Doorbell 2K says it can "recognize faces/objects up to 6.3 meters", about 21 feet. That is a looser use of the word than the surveillance standard's 40 pixels per foot: by the standard's definitions, 21 feet on a 2K doorbell is observation territory, enough to see build and clothing, not enough to pick a stranger out of a lineup. That is also the honest context for Ring's claim that 4K makes it "easier to identify people, objects, or license plates": easier at close range, not at the far end of the motion zone.

Three things pull these numbers down further. Ring states that video resolution may vary with bandwidth and recommends 15 Mbps upload for its 4K devices, so a weak connection can leave a 4K camera streaming well below 4K. Motion blur, backlighting, and a subject who never faces the lens cost detail that no resolution recovers. And compression on the recording you scrub through later is heavier than the live stream.

Night vision: what changes after dark

Ring describes its current Night Vision as two modes that switch automatically. In dim light the camera keeps recording in color, which is what lets you see a jacket or vehicle color; Ring's own product pages say nearby street lighting is enough. In full darkness it switches to black-and-white infrared. Older devices expose this as a Color Night Vision toggle in Video Settings.

Ring rarely publishes a night-vision distance. The two figures it does give, both in product FAQs, are "Night Vision up to 10m range" for the Wired Doorbell 2K and infrared "illumination up to 6m from the source" for the Battery Doorbell 2K, so 20 to 33 feet, well short of the daytime view. The physics explains why. Infrared mode lights the scene with the camera's own IR LEDs, and that light has to travel out and bounce back. Close objects come back bright, sometimes overexposed, and distant ones fade to black. Ring's newer models add Adaptive Night Vision, which the company says adjusts the illumination to reduce dark shadows and blown-out close-ups, but it does not turn a porch light into a floodlight. After dark, treat the porch and the near driveway as the reliable zone, and treat color detail beyond it as a bonus that depends on street lighting.

Reflections are the other nighttime problem. IR bounces off a nearby wall or a window in front of the lens and washes out the image. Ring's Wedge and Corner Kit guide recommends a Corner Kit to angle a doorbell away from an adjacent wall for exactly this reason, and its positioning guide notes that the infrared light can be switched off on Indoor Cams and some Stick Up and Outdoor Cams that face a window.

One useful distinction: PIR motion detection does not care about darkness, because it reads heat. Camera-based features such as Smart Alerts and person detection do depend on image quality, so they degrade at night before the basic motion trigger does.

Mounting height and angle change the range more than the model does

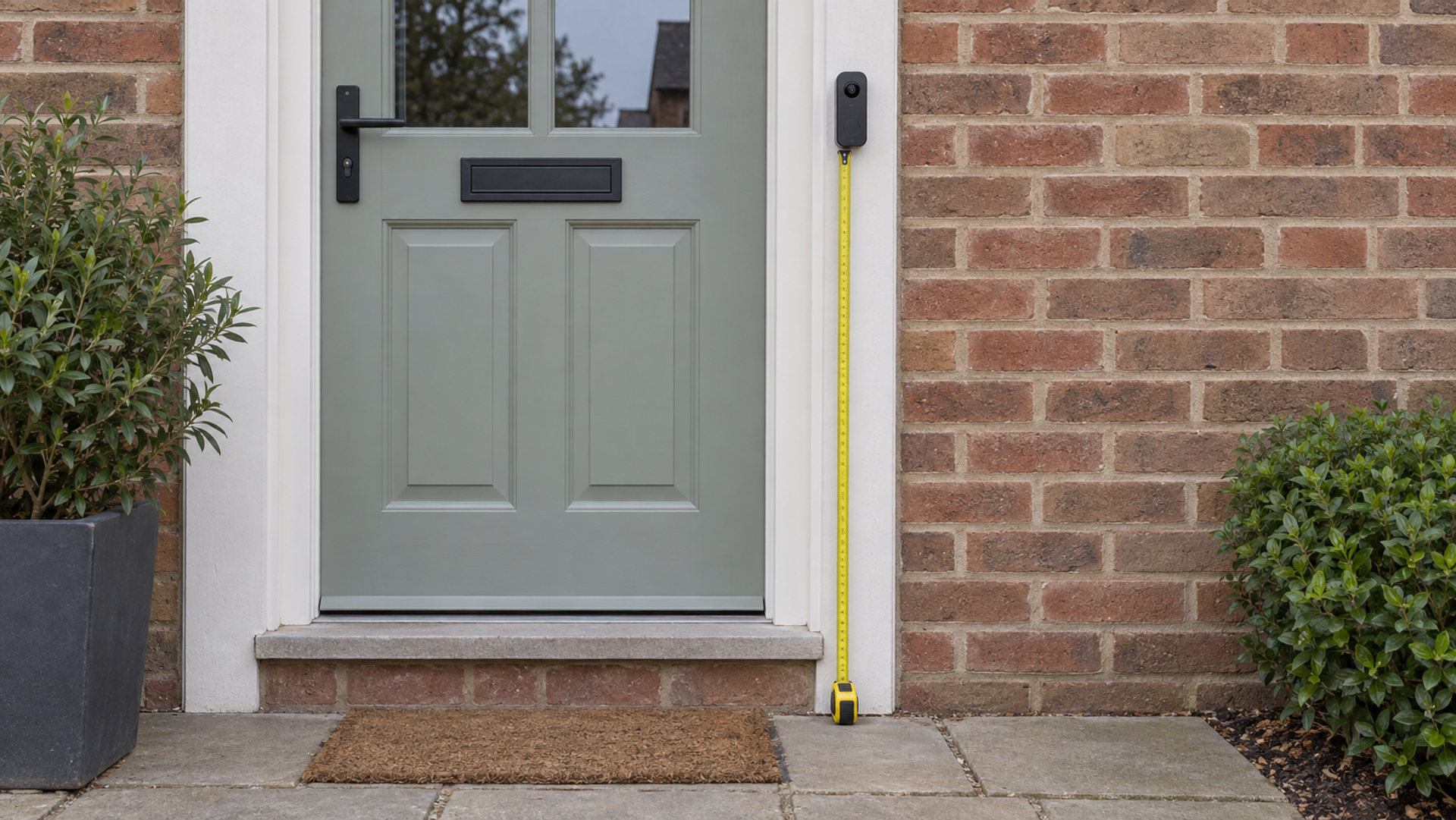

Ring's positioning guidance is specific. Doorbells should be mounted 48 inches (1.22 meters) from the ground for optimal motion detection; the wide lens means they do not need to go higher to see faces, and mounting too high or too low produces inconsistent detection. Outdoor security cameras are designed for 8 to 10 feet of height with a 20-degree downward tilt. Indoor cameras can go up to 8 feet, facing into the room and away from windows. For Bird's Eye Zones on cameras, Ring asks for a steeper 45 to 60-degree tilt with the horizon level in the frame.

If your door sits above steps, or the wall is angled siding, a Wedge Kit tilts the doorbell up or down: most models stack three 5-degree wedges for up to 15 degrees, while the Wedge Kits for Wired Doorbell Pro and Video Doorbell Wired use two 10-degree pieces. A Corner Kit turns the view sideways, up to 45 degrees in 15-degree steps on most doorbells, or a single 25-degree piece on the two wired models. These are the cheapest range upgrades Ring sells, because they point the fixed lens and the motion sensor at the path people actually walk.

Things that shrink the range without you noticing

• Motion Zones. Up to three per device, and motion outside them is always ignored. A zone drawn tightly around the porch is a 10-foot motion range, whatever the spec sheet says.
• Privacy Zones. Up to two per device. They black out part of the video permanently in recordings, and Ring notes that motion behind a Privacy Zone can still trigger a recording of a blacked-out area. If the camera is nudged, the zone stays where it was on the frame, not on the world.
• Motion Sensitivity and Motion Frequency. A low sensitivity setting shortens detection range; Periodically mode on battery devices adds pauses after each event.
• Glass. A camera behind a window cannot sense heat through it, and Ring warns that reflective surfaces in view affect detection. Windows also throw IR back at the lens at night.
• Bandwidth. The lens sees the same scene regardless, but the video that reaches the cloud, and your phone, is scaled to your upload speed. Ring lists 15 Mbps upload for 4K devices and 2 to 2.5 Mbps for older 1080p and 1536p models.
• Weather and obstacles. Rain, foliage, and reflective surfaces affect both PIR and radar, and Ring says so in its Bird's Eye Zones documentation.

When this guide does not apply

The figures above are for Ring's fixed-lens doorbells and cameras sold in the United States. The Pan-Tilt Indoor Cam and the Stick Up Cam on a Pan-Tilt Mount rotate, so their coverage is a matter of where you point them, and they do not support Privacy Zones. Ring Alarm motion detectors are a different product with their own detection ranges and are not covered here. First-generation devices lack some of the features described. Ring updates specifications and feature lists regularly, so for a purchase decision check the Tech Specs on the product page for the exact model, and for a device you own, confirm the model in the Ring app first.

Sources

• Ring Help, "Using Motion Zones for Cameras and Doorbells": https://ring.com/support/articles/85pqb/Using-Camera-Motion-Zones (accessed September 8, 2026)
• Ring Help, "Using Motion Detection": https://ring.com/support/articles/q986o/using-motion-detection (accessed September 8, 2026)
• Ring Help, "Use Bird's Eye Zones for More Relevant Motion Alerts": https://ring.com/support/articles/nx1sf/How-to-Use-Birds-Eye-Zones (accessed September 8, 2026)
• Ring Help, "Night Vision in Ring devices": https://ring.com/support/articles/83hut/Turning-Color-Night-Vision-On-or-Off-in-the-Ring-App (accessed September 8, 2026)
• Ring Help, "Positioning doorbells and security cameras": https://ring.com/support/articles/88ix9/Positioning-doorbells-and-security-cameras (accessed September 8, 2026)
• Ring Help, "Using a Wedge or Corner Kit with your doorbell": https://ring.com/support/articles/uqi64/Using-a-Wedge-or-Corner-Kit-with-your-doorbell (accessed September 8, 2026)
• Ring Help, "Using privacy features in the Ring app": https://ring.com/support/articles/g4e2w/using-privacy-features-in-the-ring-app (accessed September 8, 2026)
• Ring Help, "Maximizing Your Smart Lights Motion Detectors": https://ring.com/support/articles/kh0py/Maximizing-Your-Smart-Lights-Motion-Detectors (accessed September 8, 2026)
• Ring Help, "Ring product name changes": https://ring.com/support/articles/538eg/ring-product-name-changes (accessed September 8, 2026)
• Ring Help, "Finding your Ring doorbell or camera model in the Ring app": https://ring.com/support/articles/2dkho/finding-device-model-ring-app (accessed September 8, 2026)
• Ring, Battery Doorbell 4K Pro product page and doorbell comparison: https://ring.com/products/battery-doorbell-pro-2nd-gen (accessed September 8, 2026)
• Ring, Outdoor Cam 4K Pro product page and camera comparison (3840 x 2160): https://ring.com/products/outdoor-cam-pro-4k (accessed September 8, 2026)
• Ring, Wired Doorbell 2K product page (FAQ: 1920 x 1920, motion up to 31 m, faces up to 6.3 m, Night Vision up to 10 m; spec: Motion Detection): https://ring.com/products/wired-doorbell-2nd-gen (accessed September 8, 2026)
• Ring, Battery Doorbell 2K product page (FAQ: 1920 x 1920, infrared illumination up to 6 m): https://ring.com/products/battery-doorbell-2nd-gen (accessed September 8, 2026)
• Ring, Wired Doorbell 4K Pro product page (FAQ: 2880 x 2880, 1:1 aspect ratio): https://ring.com/products/wired-doorbell-pro (accessed September 8, 2026)
• Ring, Wired Doorbell 2K Plus and Battery Doorbell 2K Plus product pages (FAQ: 1920 x 1920): https://ring.com/products/wired-doorbell-plus and https://ring.com/products/battery-doorbell-plus-2nd-gen (accessed September 8, 2026)
• Ring Help, Battery Doorbell Pro tech specs: https://ring.com/support/products/doorbells/battery-doorbell-pro (accessed September 8, 2026)
• Ring Help, Video Doorbell 4 tech specs: https://ring.com/support/products/doorbells/video-doorbell-4 (accessed September 8, 2026)
• Axis Communications, "Pixel density based on IEC 62676-4:2014" (white paper, April 2026): https://whitepapers.axis.com/en-us/pixel-density-based-on-iec-62676-4-2014 (accessed September 8, 2026)
